Herbicide Strip Sprayer for Blueberry TOLA

Herbicide strip sprayer for blueberry bushes TOLA is designed to control weeds under the crowns of blueberry bushes and other shrubs and trees in the orchard crops. The special design of the modules protects the ballast in blueberry crops.


  • The spraying module, encountering the resistance of shrub or trees, is slightly pushed back, which allows close and precise spraying around the bush.
  • The position of the spraying module can be adapted at different angles with respect to berry bushes.
  • Using a shielded sprayer, to prevent herbicides from coming in contact with the blueberry plants and to prevent herbicides from coming in contact with the blueberry plants.
  • The herbicide strip sprayer for blueberry is mounted in front of the tractor and we offer a customized bracket based on the appropriate tractor.
  • Hydraulic width control to eject working part (left / right side independently) which can then be adjusted to the row width
  • Hydraulic lifting/lowering of the working part
  • Hydraulic tilting of the spaying heads, the position of the module relative to the bush can be changed at different angles (option: hydraulically)

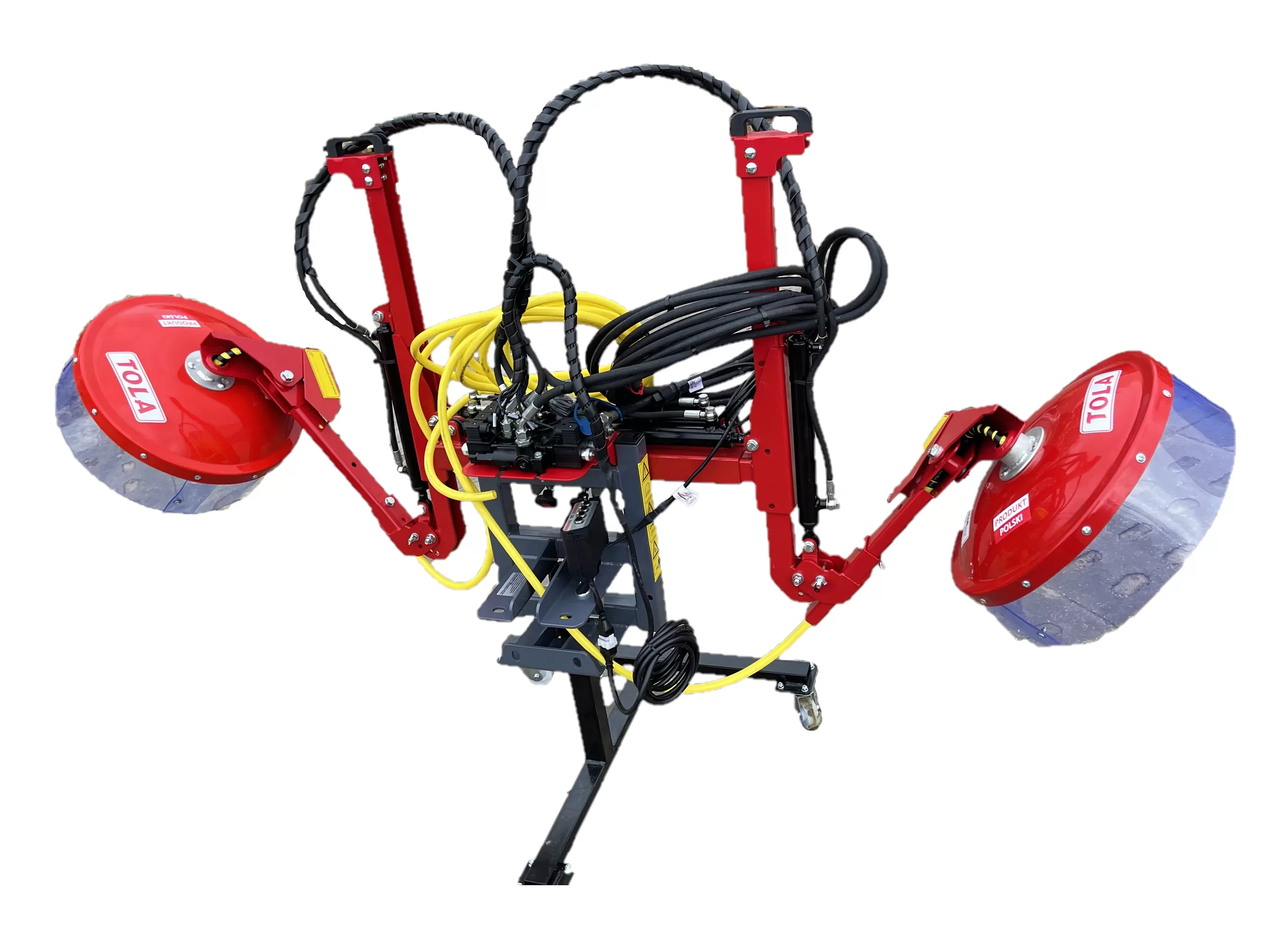

  • Equipped with storage and transport stand
Technical parameters of the TOLA blueberry bush sprayer:

 Version 1- sided 1-sided Tilt cylinder 2-sided2-sided Tilt cylinder
  Length (without bracket): 0,52m 0,52m 0,6m 0.6m
  Height (without stand)  0,8m  0.8m  0.8m 0,8m
Min Working width  0,79m 1.05m 1,58m 2.01m
Max. working width.  1,93m 1,93m3,86m 3,86m
Hydraulic (Lifting/lowering)  0,3m0,3m 0,3m 0,3m
Spray width  0,51m0,51m  1,01m 1,01m
Spray pressure  2-4 bar  2-4 bar  2-4 bar   2-4 bar
Working speed  Up to 10 km/h   Up to 10 km/h   Up to 10 km/h   Up to 10 km/h
Working capacity 0,5 – 1,0 ha/h   0,5 – 1,0 ha/h 1,0 – 2,0 ha/h   1,0 – 2,0 ha/h
Weight 70 kg 70 kg 100 kg100 kg
Attached type Customized bracket for the appropriate tractor   Customized bracket for the appropriate tractor
  Customized bracket for the appropriate tractor   Customized bracket for the appropriate tractor

TOLA versions of the blueberry sprayer:

  • TO-001 Single-sided with mechanical adjustment width
  • TO-002 Single-sided with hydraulic cylinder for lifting/lowering the spraying module
  • TO-003 Single-sided with hydraulic inclination for regulating the spraying module and width regulation
  • TO-004 Double-Sided with one cylinder to regulate the width
  • TO-005 Double-sided with 2 hydraulic cylinders for regulating the spraying module + 1 cylinder for width control
  • TO-006 Double-sided with 2 hydraulic  cylinders for regulating the inclination of the spraying module + 1 cylinder for width control
  • TO-007 Double-sided with 2 lifting or 2 inclination cylinders + 2 cylinders for width regulation + control panel Electro-valve 4 Sections.
