Technical Facts TG 303- Conversion capacity up to 700 m³/h.
- Small machine; the TG 303 is only 3.6 m long.
- Weight: 2400 kg
- Total width in transport position 2.15 m
- Total height, transport position 4.0 m
- Inner tunnel height 1.65 m
- Ideal working speed max. 300-400m/h
- Weight approx. 2100 kg
- Compost pile width x height 3.3 x 1.5 m

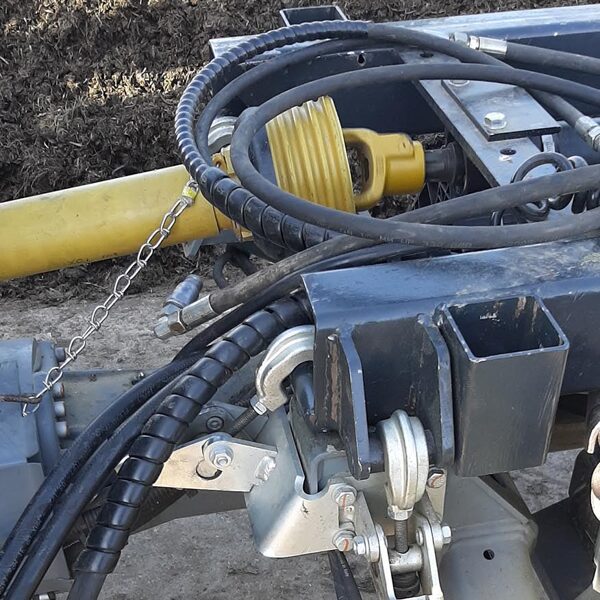

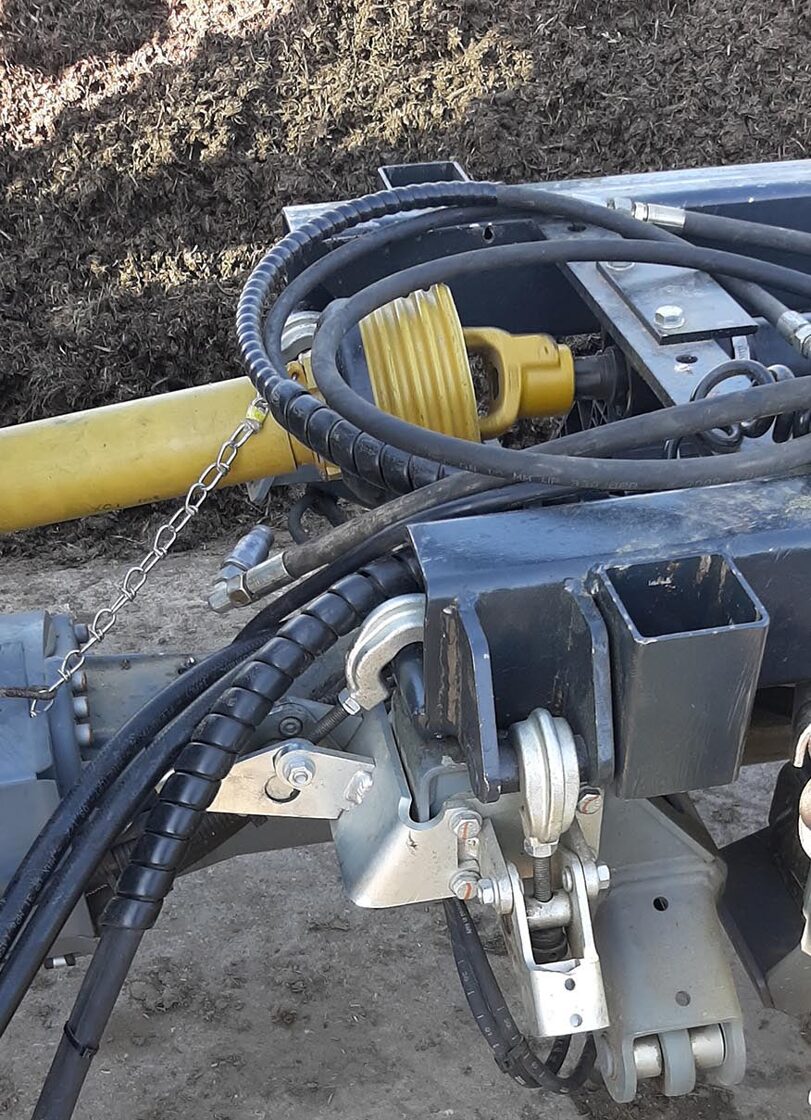

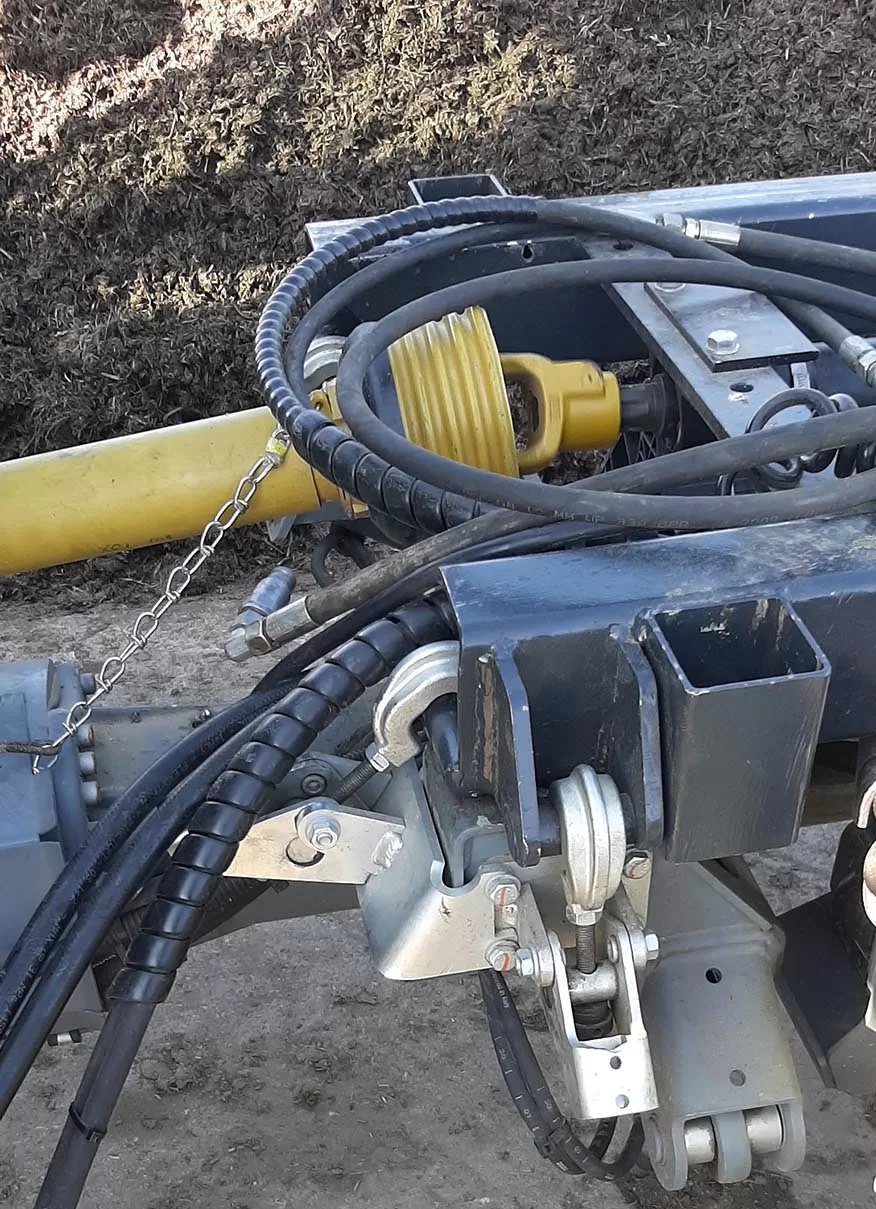

Basic equipment: - Cardan shaft with shear bolt
- PTO shaft Gearbox reduction shaft
- Tile guide front and rear

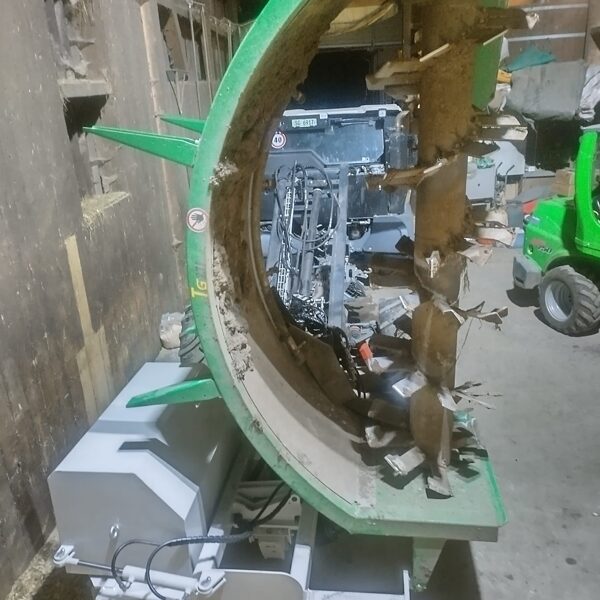

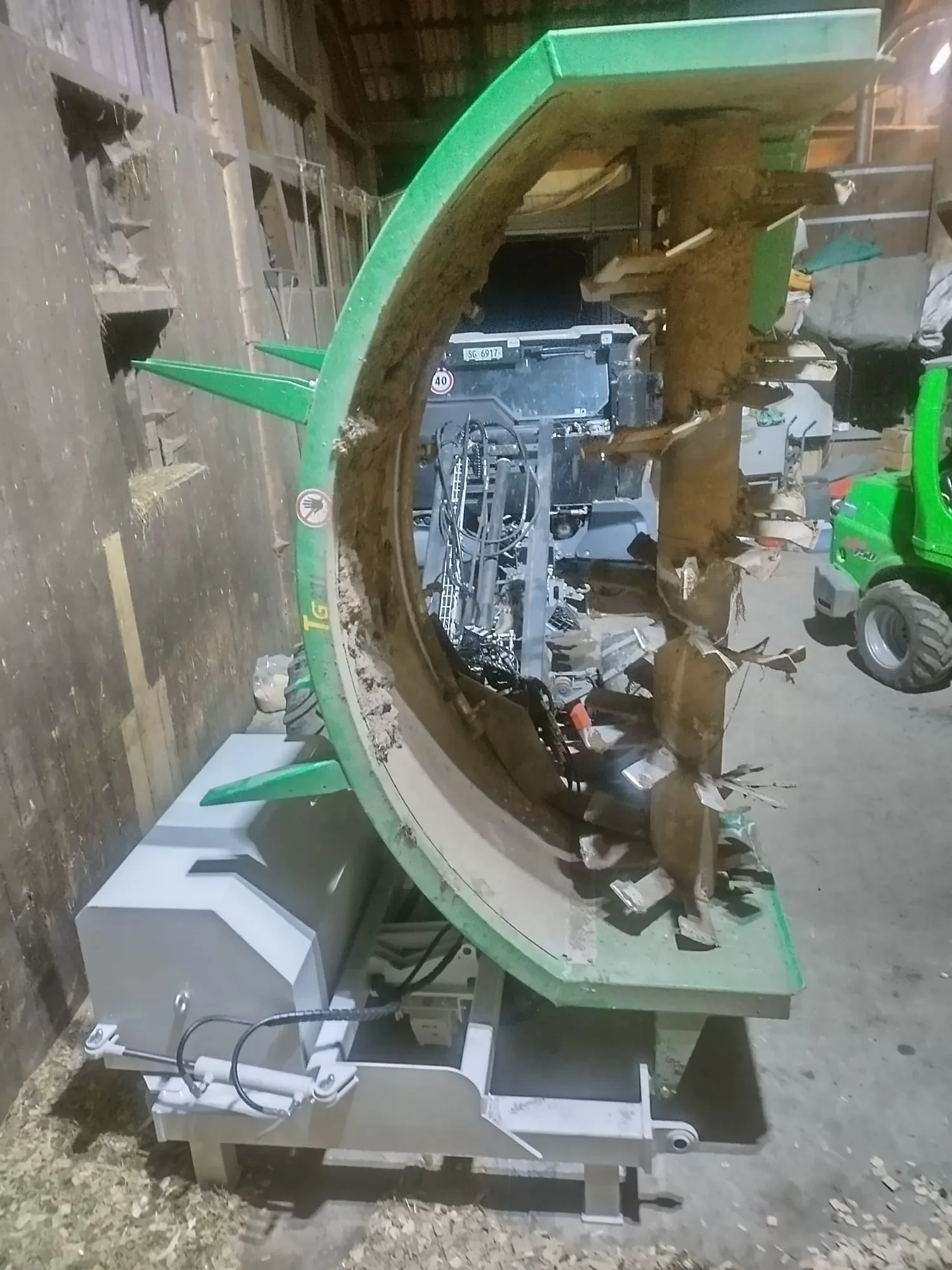

- Tunnel with chrome steel plates
- Direct drive on transfer shaft

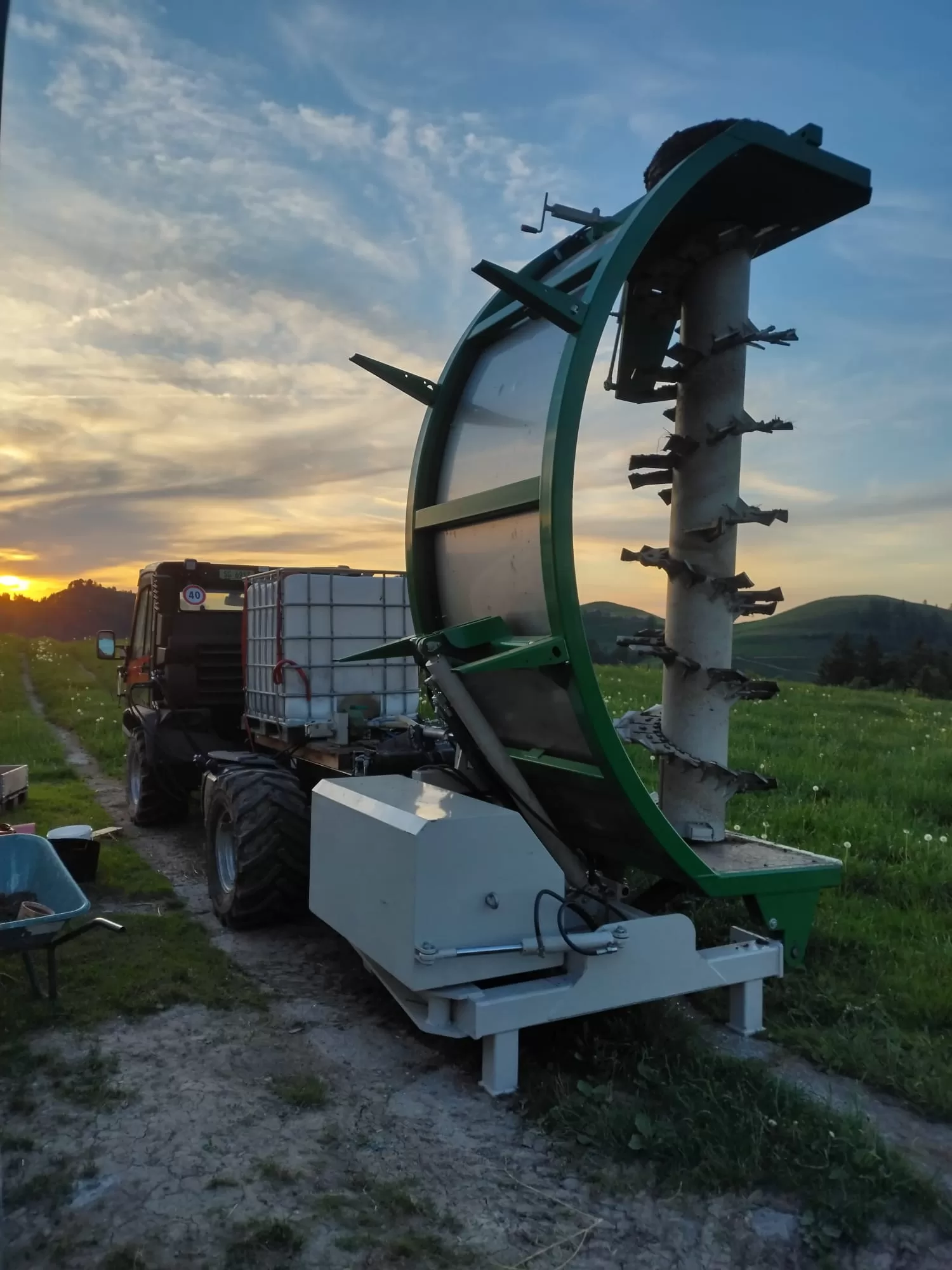

- Large support wheel on the outside of the tunnel (swivelling, for transport)
- Mechanical feed plates
- Hydraulic side weight
Many options retrofittable such as: - Blade right hydraulic
- Hydraulic side offset
- Irrigation pipe at front with baffle plate nozzles (7 pcs.)
- 3rd support foot (for suspending in working position)
- LED lighting
- Water connection at the rear
- Tile guide front and rear
- Stone guard on the right
- Water pump 180 litres
- Water pump 280 litres
|

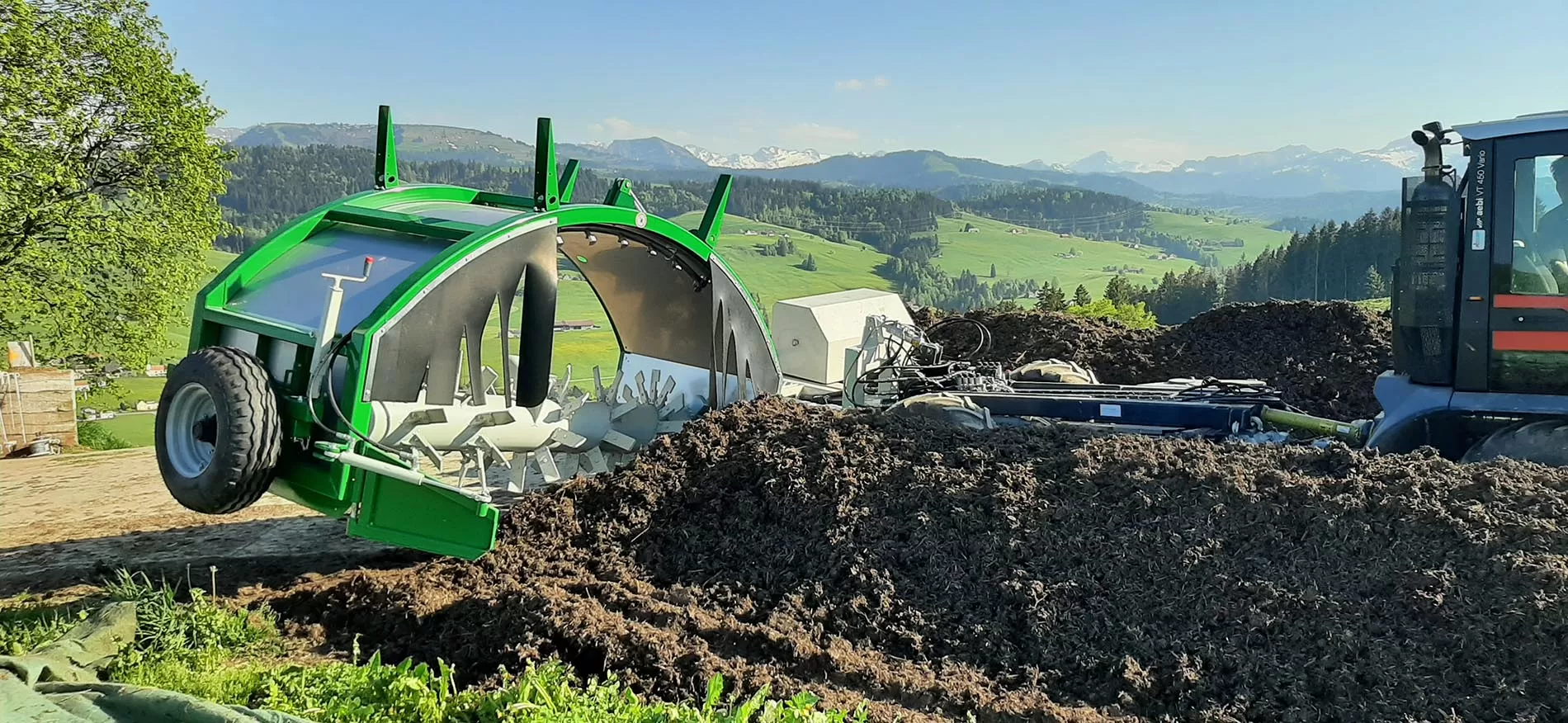

Ideal for field edge, small site composting and organic farms with composting up to 6,000 tons per year. - Low maintenance costs, simplest maintenance.
- Easy handling, simple operation.
- The massive arch construction of the tunnel made of 6 mm steel achieves a very great stability, has no weak corner points and the Powder coating prevents corrosion.
- All wear plates are made of chrome steel.

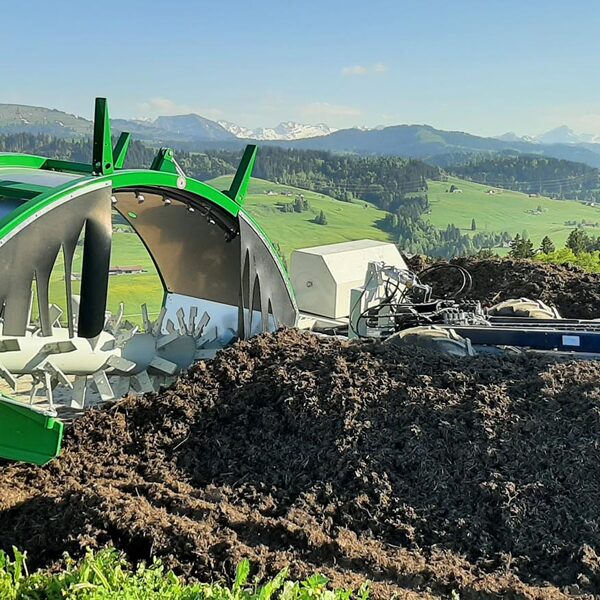

- Robust, balanced transfer shaft that properly transfers the material to be composted (from the inside to the outside).
- Fast aerobic composting; within 8 - 12 weeks, depending on the material.
- Large wide tires and thus little ground pressure.
- Thanks to swiveling side weight; protection of field and field paths and optimal weight distribution.
- This reduces the total weight of the machine up to 1,500 kg.

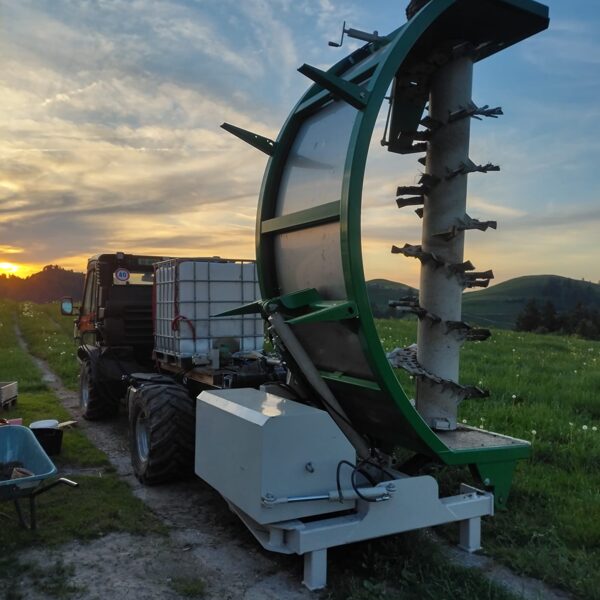

- Large Support wheel of the transfer tunnel. Swiveling without tools and in seconds. (The road transport with the wheel swung back is possible without any problems).
