Orchard strip sprayer JAGODA TELMA

Designed for weed control in orchards. TELMA can also fight weeds under berry bushes in their plantations.

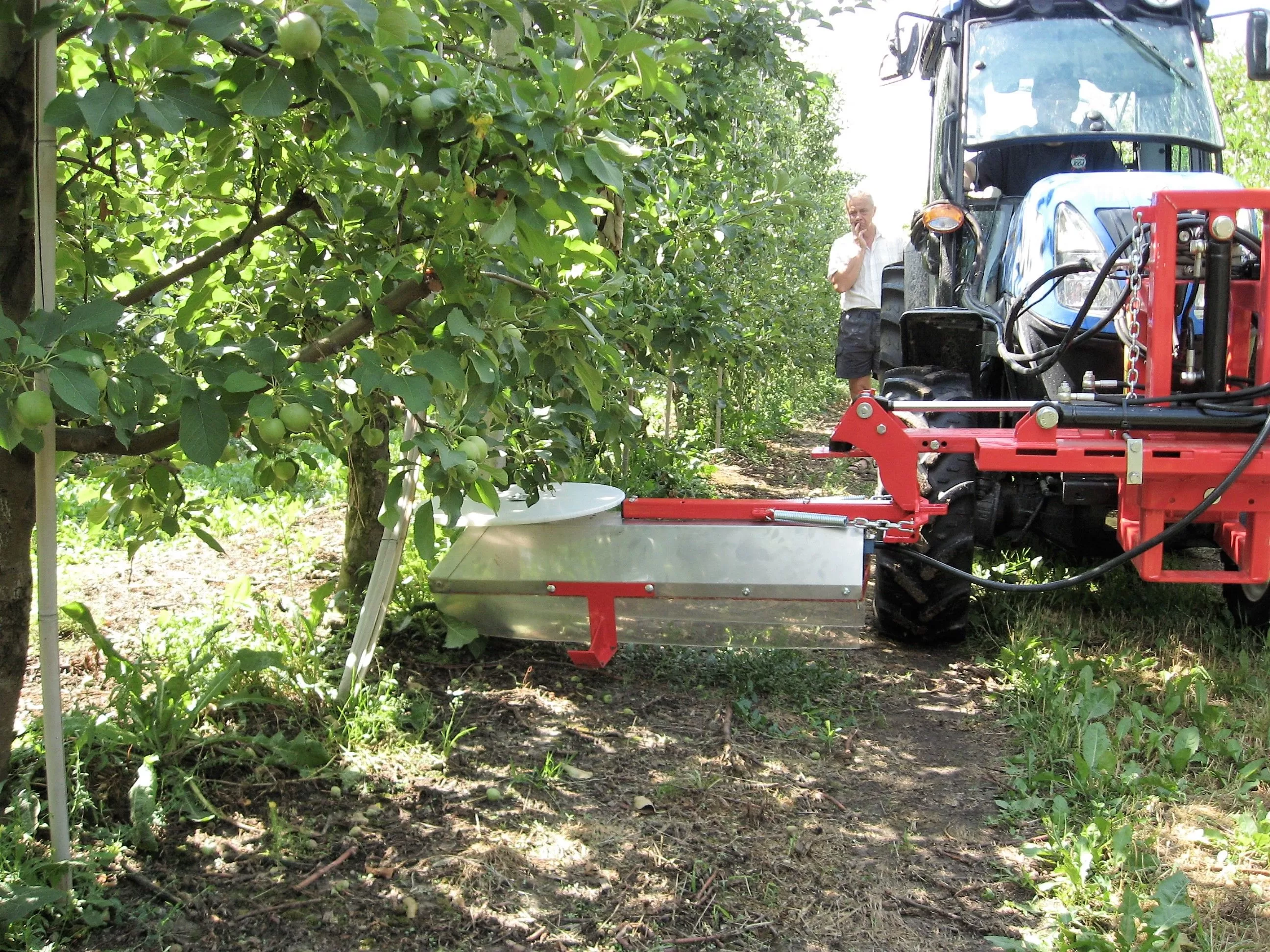

  • The sprayer is mounted on the front of the tractor.

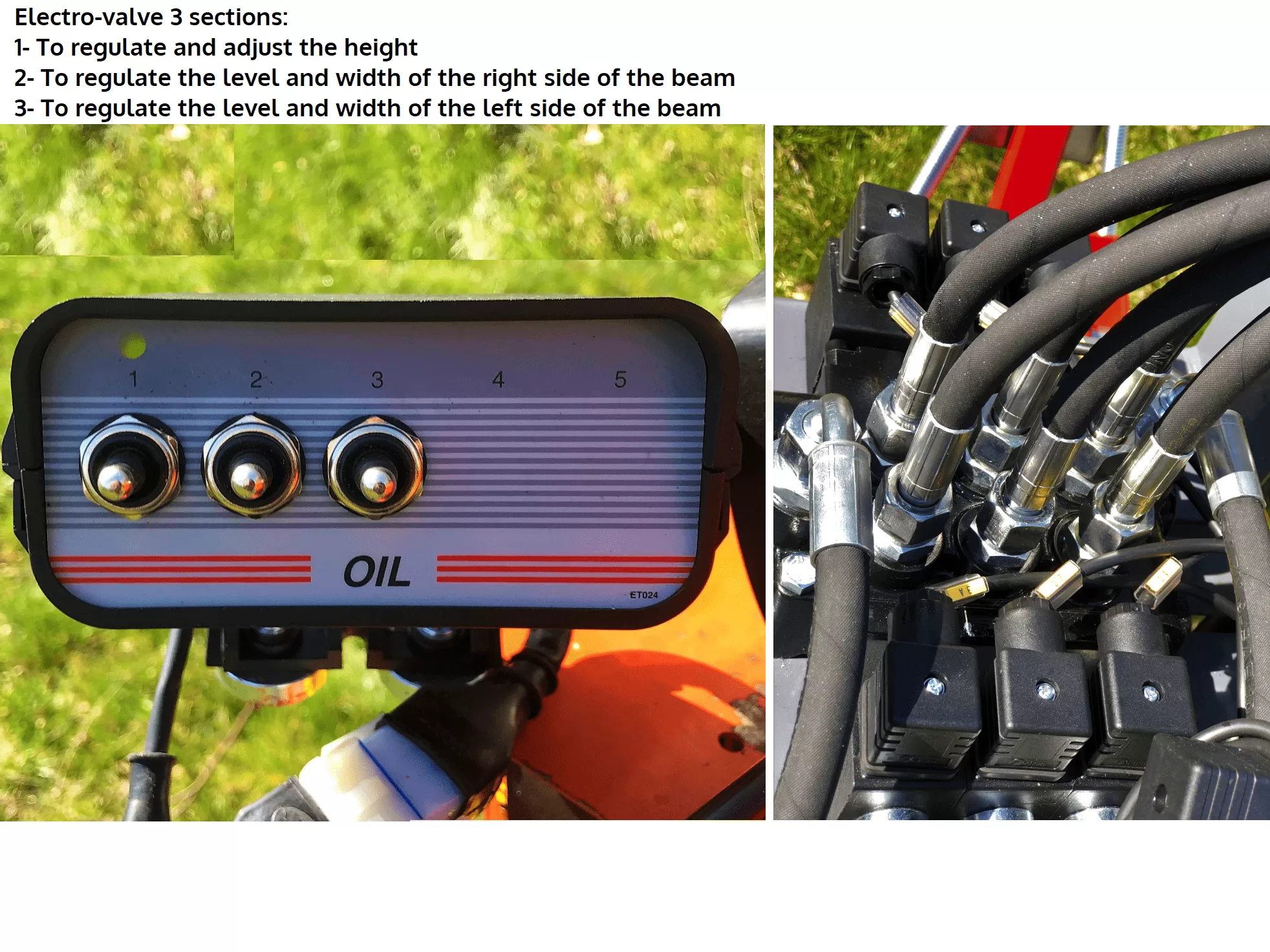

  • Hydraulics allow maneuvering the sprayer position depending on row width and the required height.

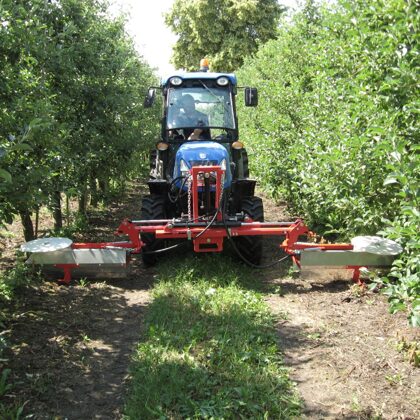

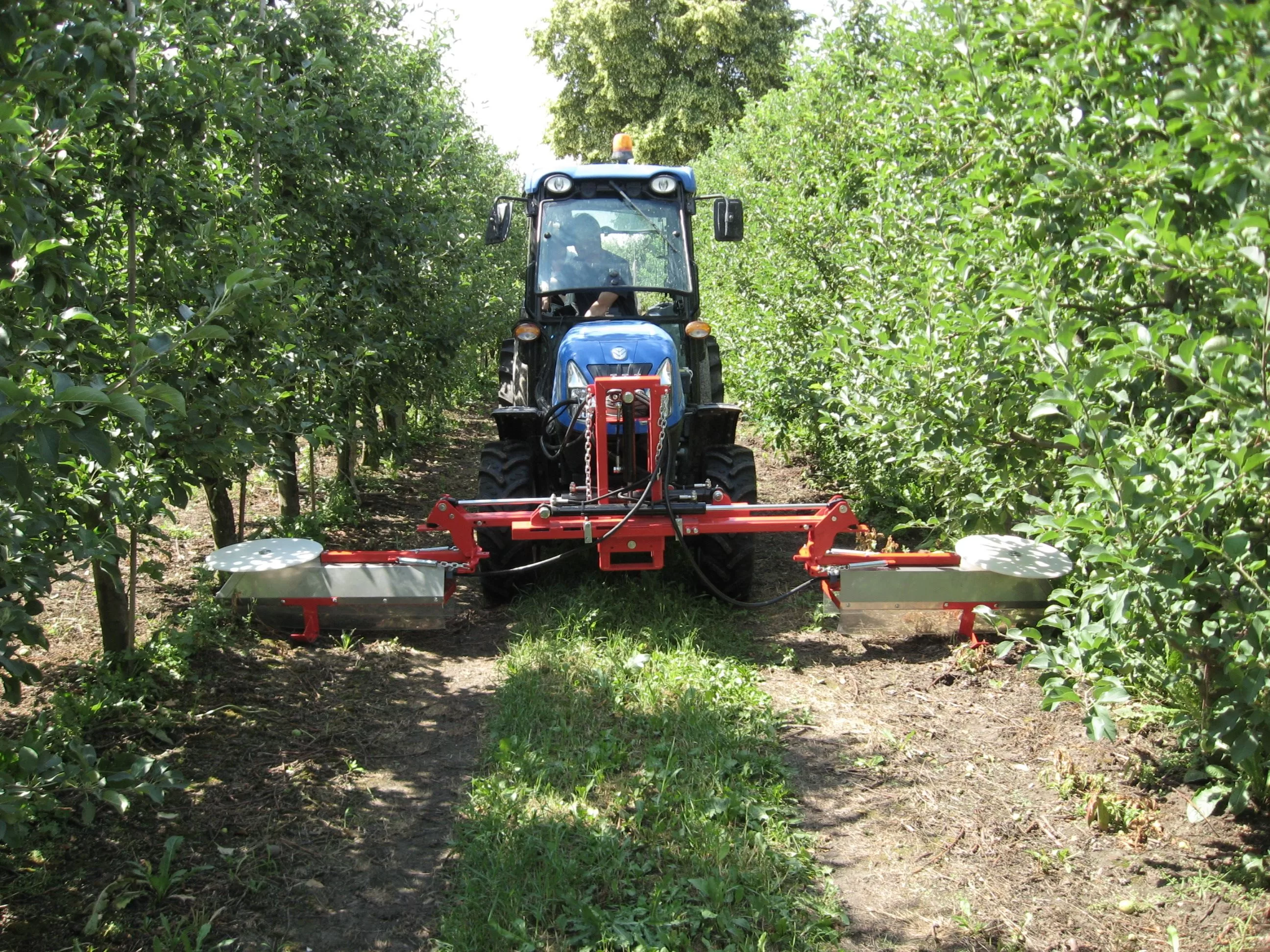

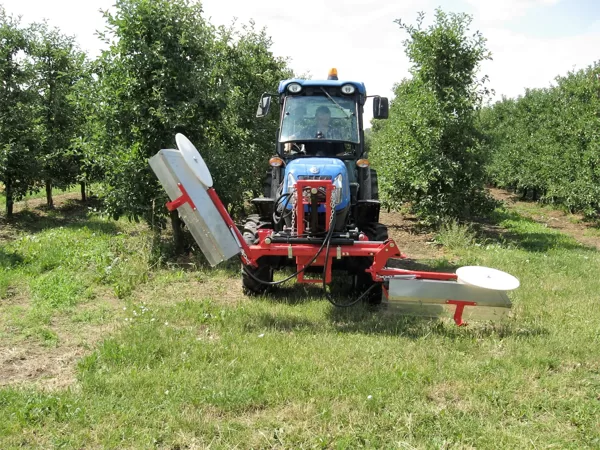

  • The design ensures uniform spraying on both sides.

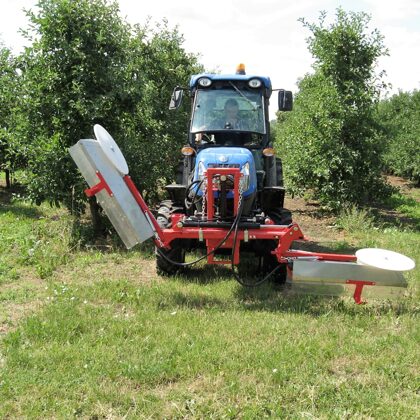

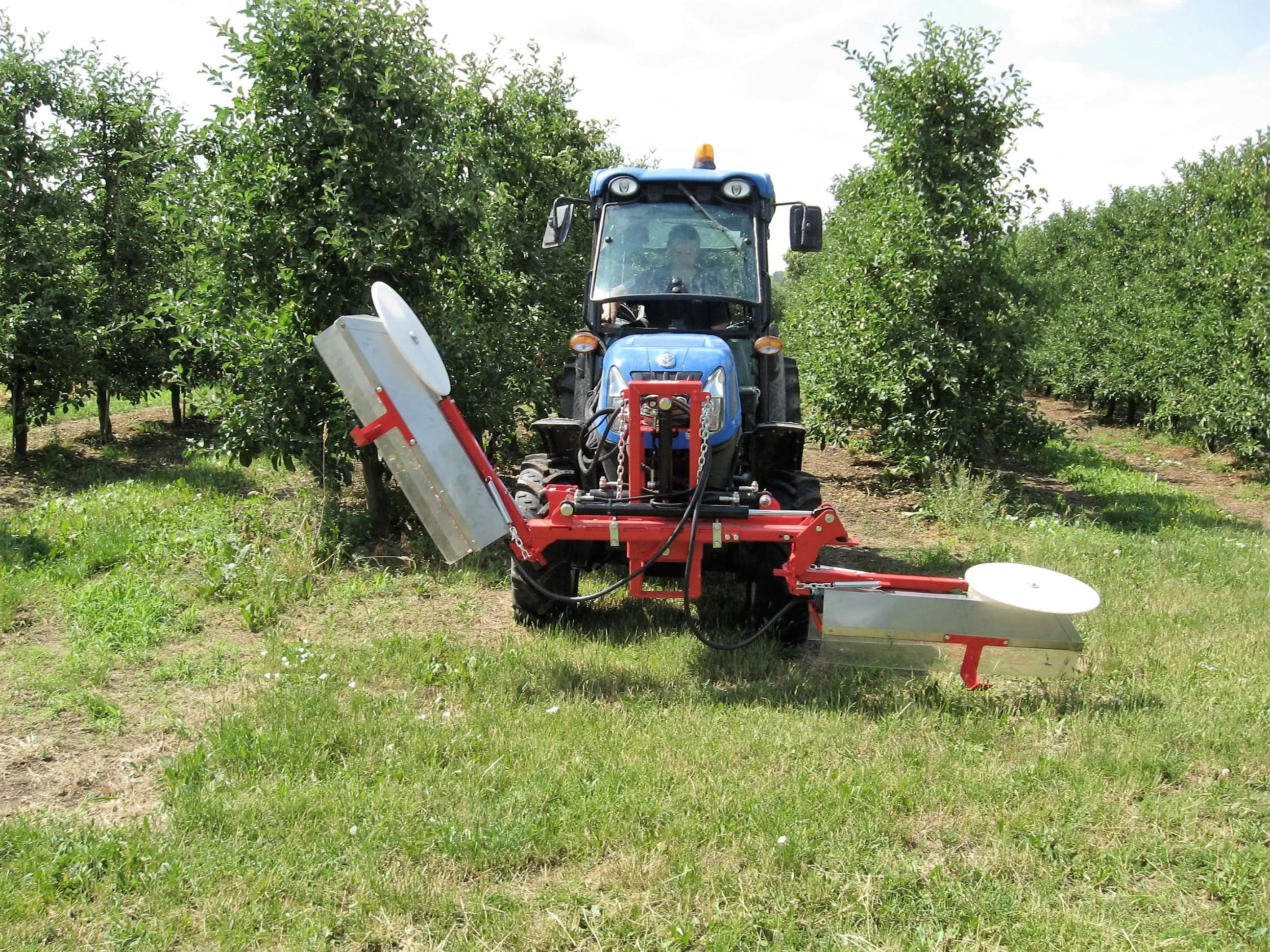

  • The TELMA sprayer can also be set for one-sided operation.

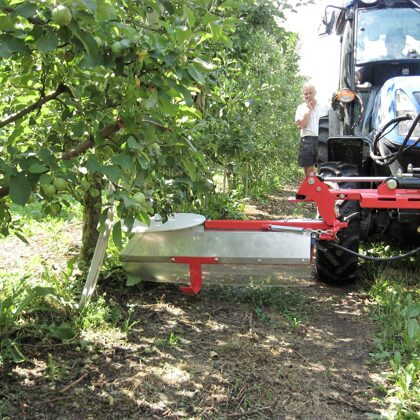

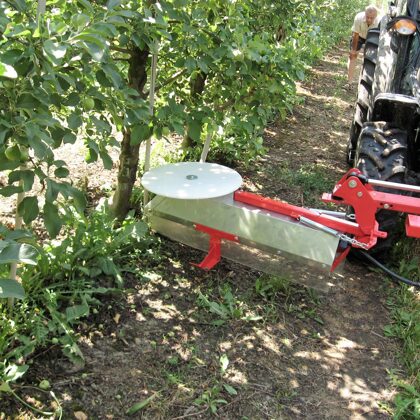

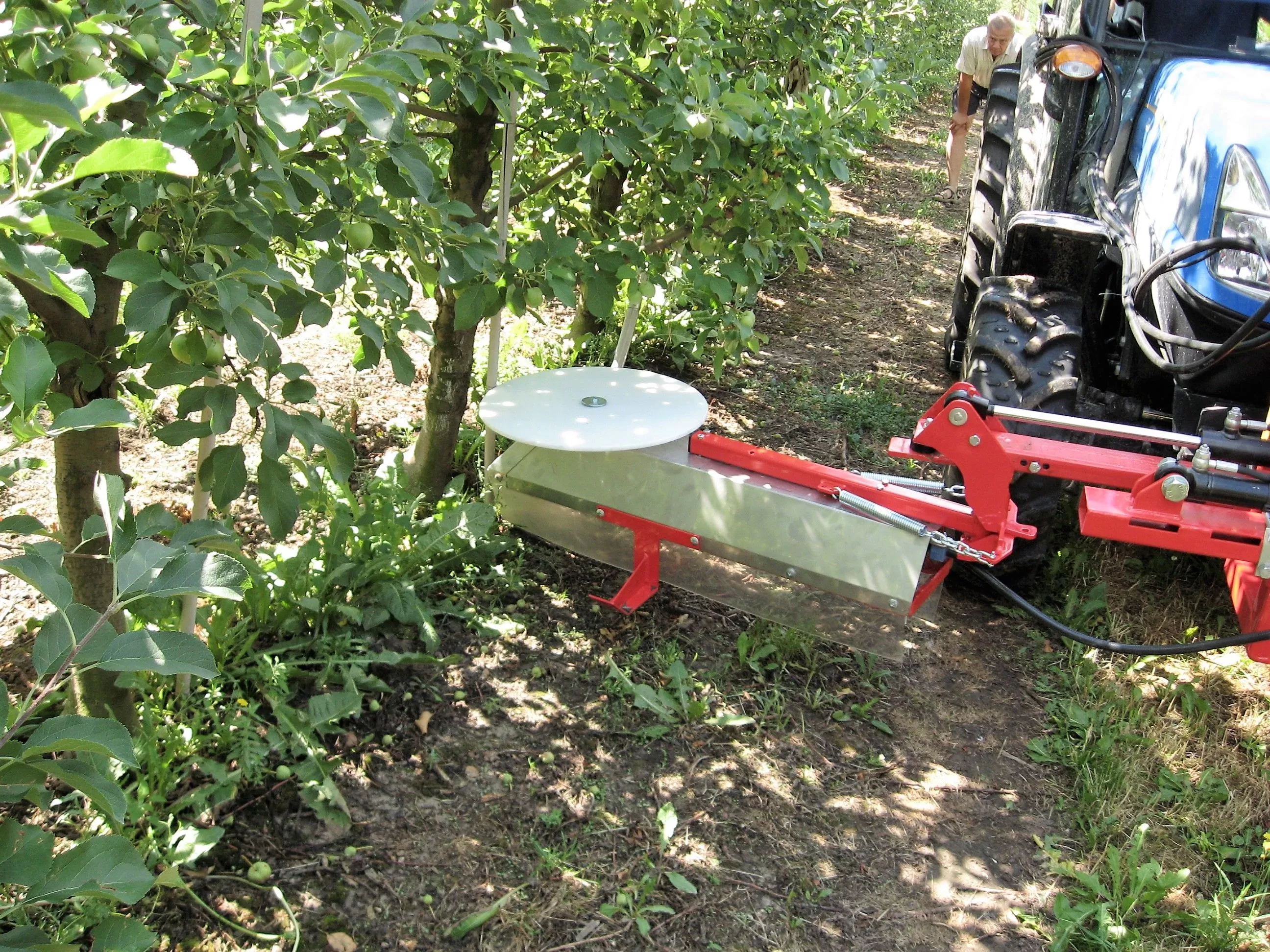

  • The sprayer is equipped with a rotating guard that protects trees and bushes from damage and from being sprayed with herbicides.
  • Three high-quality nozzles are installed under a stainless-steel cover.
  • The front and rear covers are extended by flexible, transparent plates which, when reaching the ground, prevent the working liquid from being blown away on windy days.
  • After removing part of the front cover, it is possible to significantly increase the spraying diameter.

Technical parameters of the TELMA orchard strip sprayer:

Length (without bracket): 0,760 m
Width: 2,775m - 3,966 m
Maximum working height: 0,975 m
Weight: 135 kg
Productivity: 1 - 2 ha/h
Working speed:  Up to 10 km/h
Working section lifting/lowering range: 0,2 m
Spraying width:  1 m (2 m without guards)
Spraying pressure: 2-4 bar
Tractor equipment: Corresponding tractor bracket

Product specification
