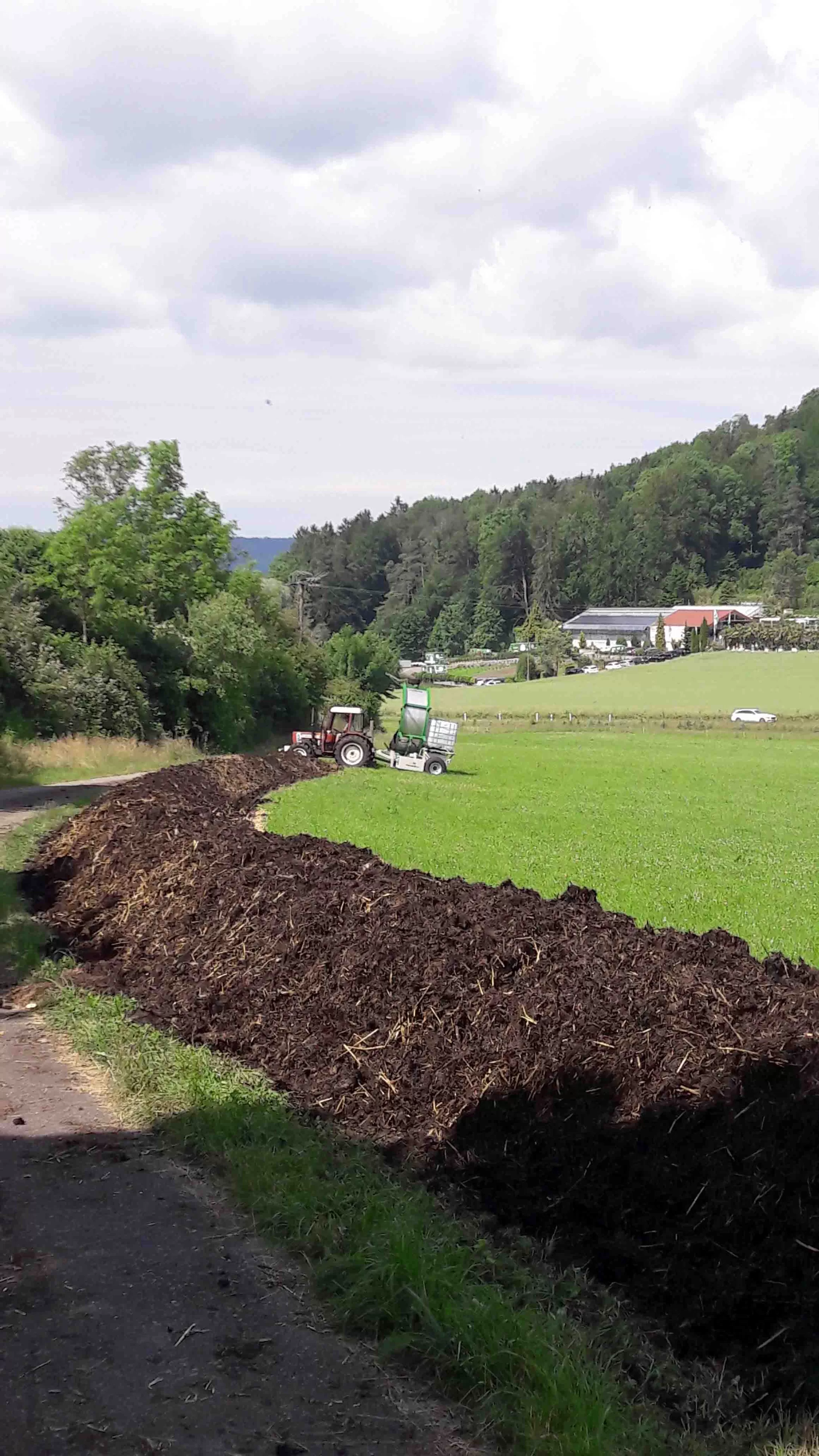

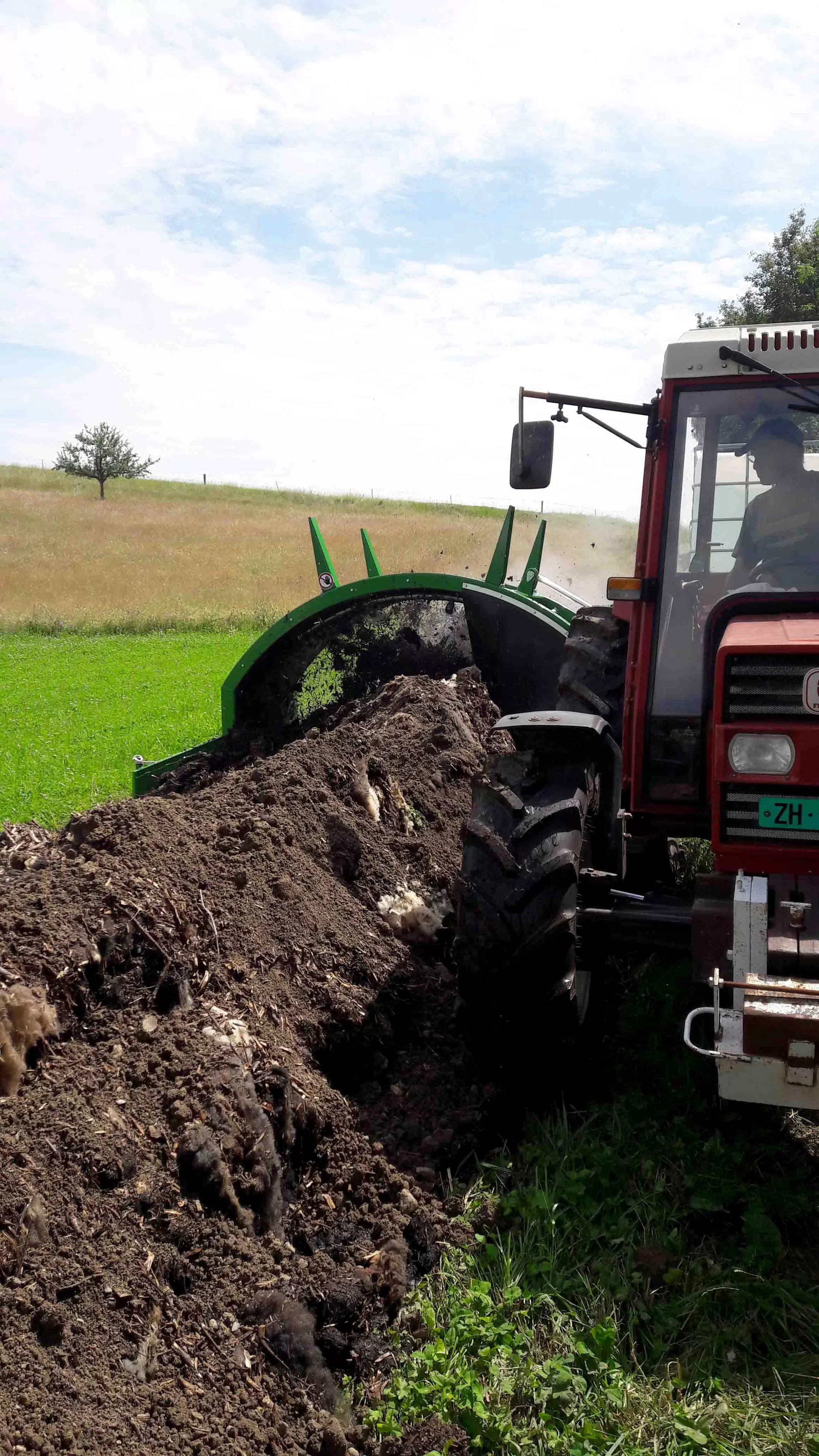

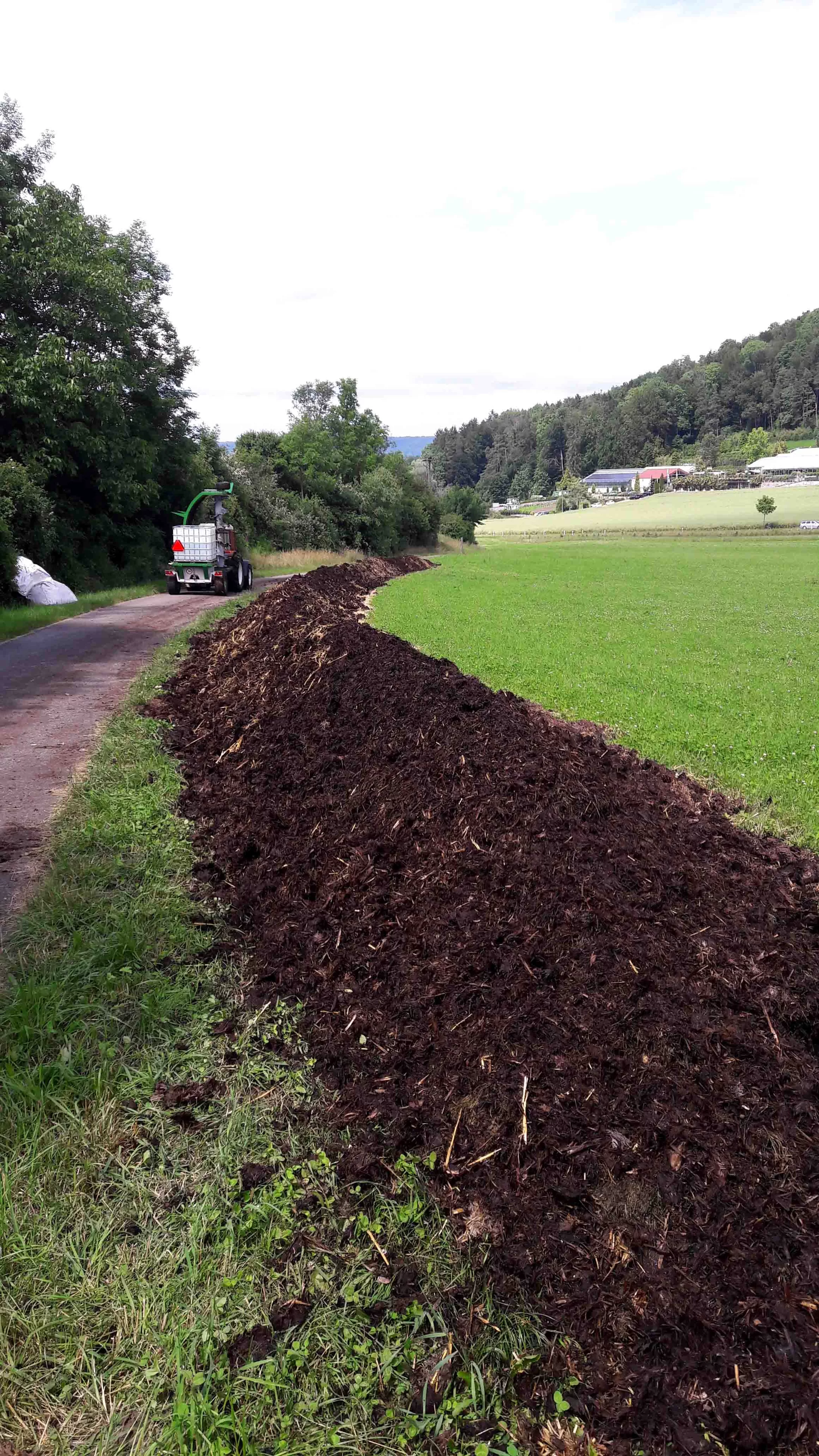

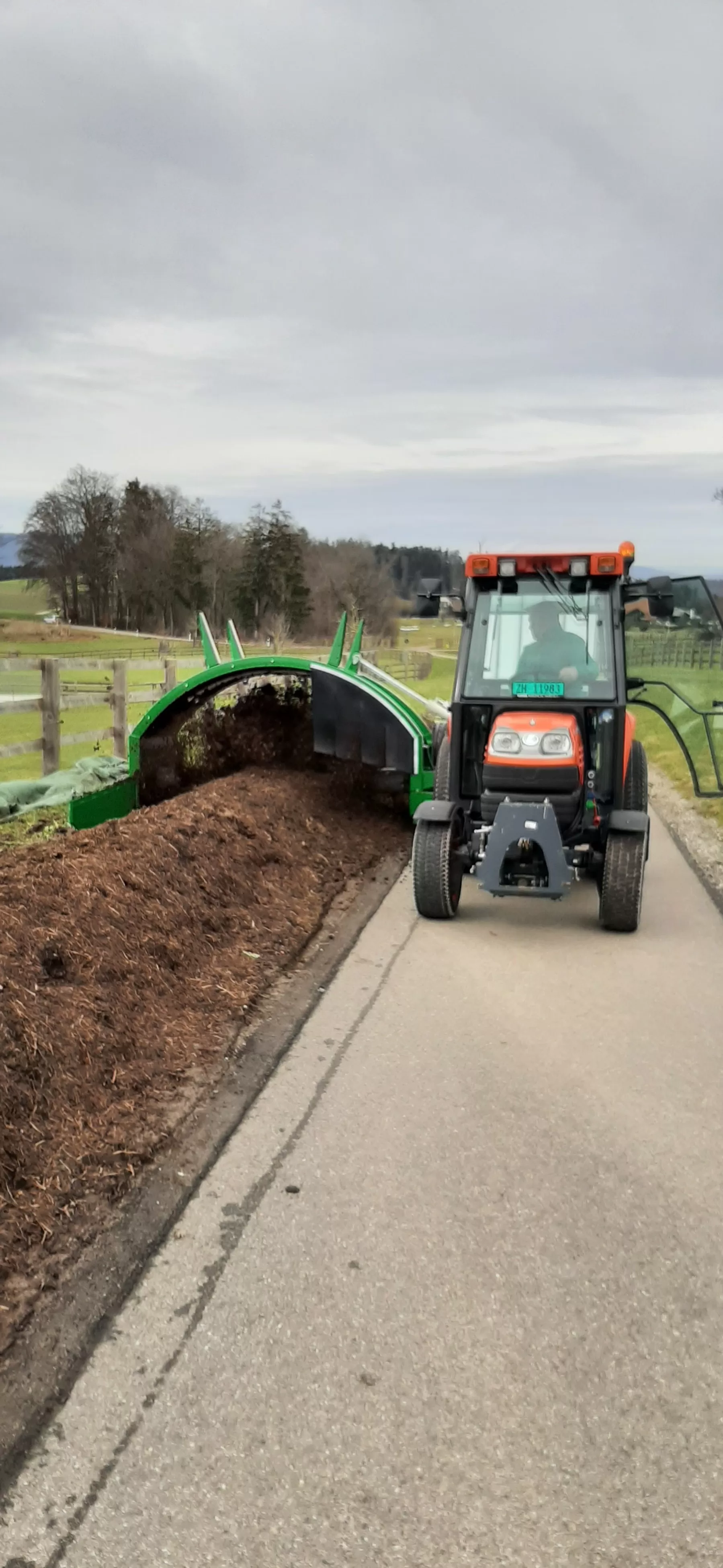

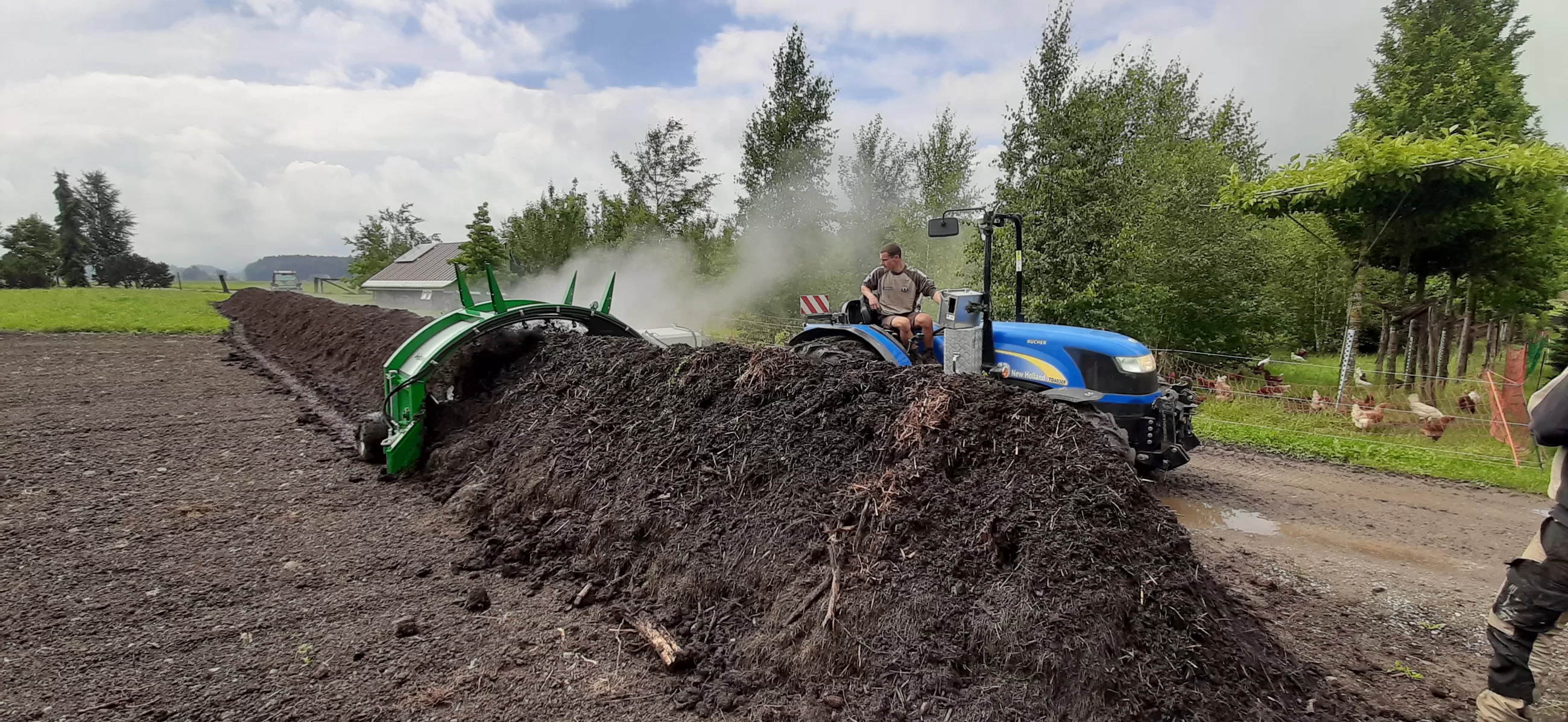

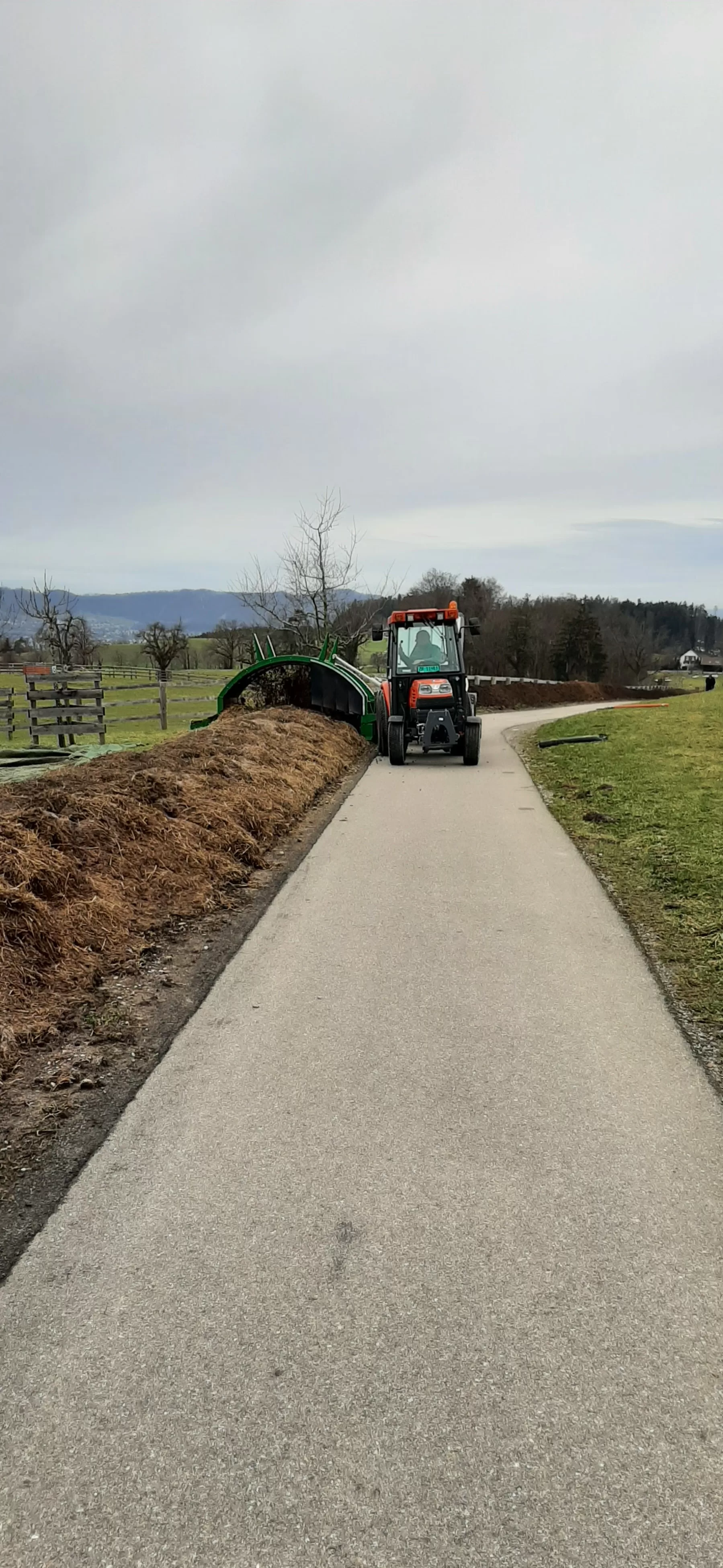

Compost turner Gujer TG 231

Working width: 2.5 meters

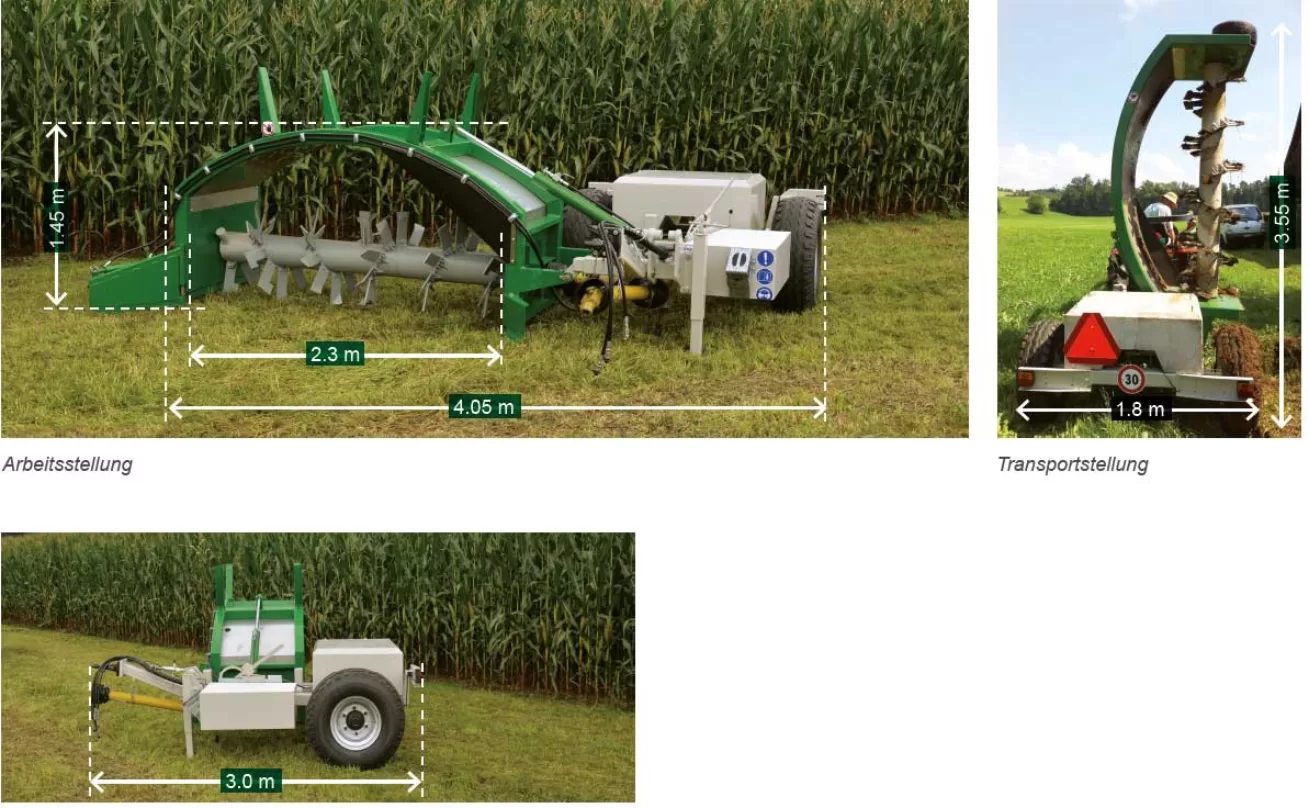

Technical data TG 231

  • Conversion capacity up to 400 m³/h
  • Transfer shaft width 2.3 m
  • Total width in transport position 1.85 m
  • Total width in working position 4.05 m
  • Total length 3.0 m
  • Tunnel height inside dimension 1.35 m

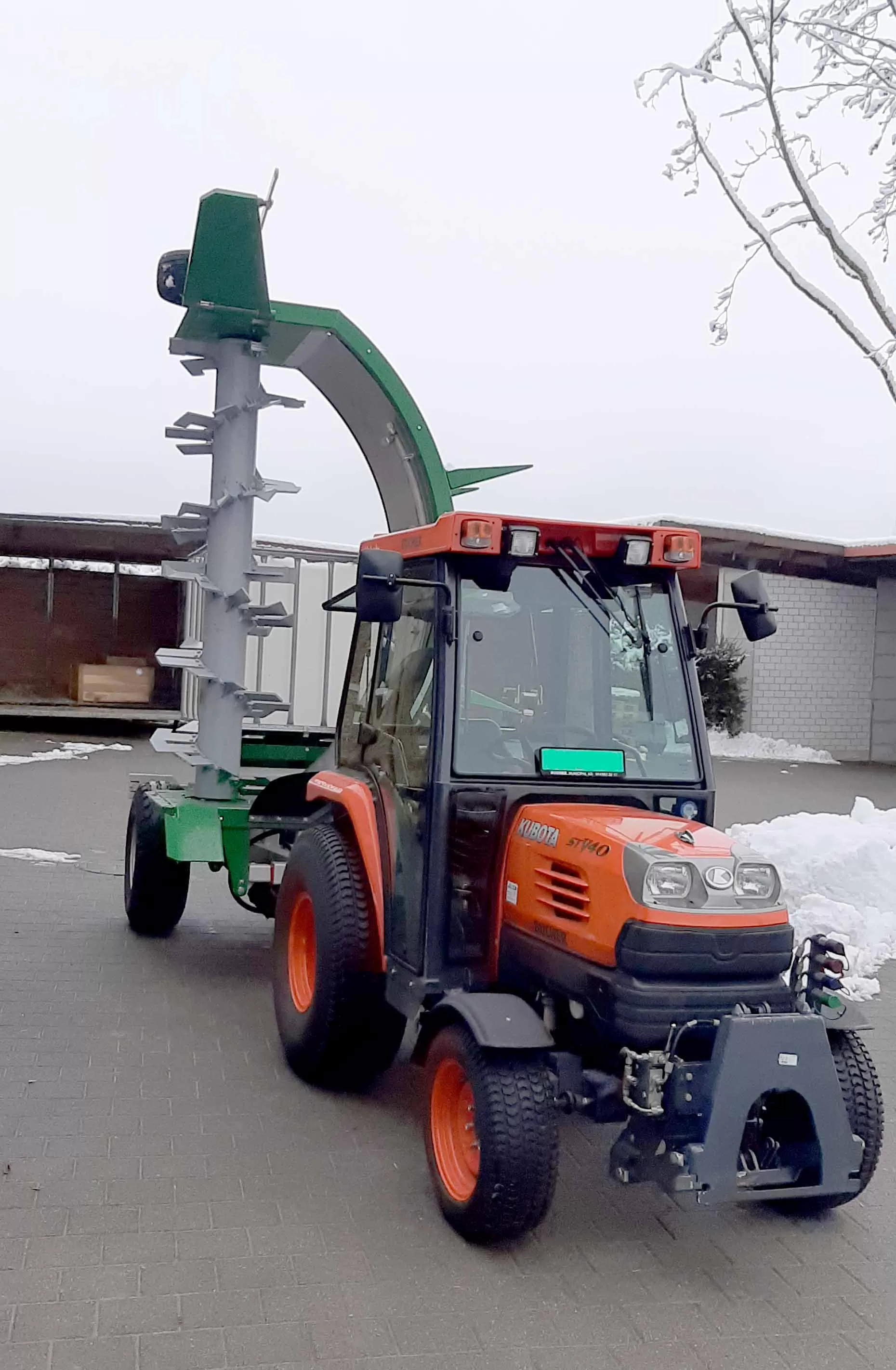

  • Total height (transport position) 3.55 m
  • Working speed, ideal at full throttle 300 - 400 m/h
  • Weight with wide tires (incl. concrete weight) 1'950 kg
  • Rent width x height 2.5 x 1.2 m
  • Only top hitching possible


Basic equipment TG 231

  • mech. execution
  • Cardan shaft with shear bolt
  • Cardan shaft Gearbox reduction shaft
  • Tunnel with chrome steel plates
  • Direct drive on transfer shaft
  • Large support wheel on the outside of the tunnel
  • Mechanical feed plates
  • Axle without brake
  • Wide tyres 11.5-15
  • Front hitch: DIN towing eye
  • Rear weight
  • Side weight
  • Adjustable articulated drawbar with spindle

Requirements for the tractor

  • For tractors with total width up to 2.1 m
  • For tractors with min. 35 to max. 80 HP
  • For tractors with a super creeper gear with a working speed at full throttle of 300 - 400 m/h at 540 rpm on the PTO shaft
  • Working pressure of the tractor must reach min. 190 bar

Options:

  • Low drawbar (bottom hitch)
  • Irrigation pipe with baffle plate nozzles (4 pcs.)
  • Water connection on rear weight
  • Hydraulic right-hand blade
  • Float position control completely mounted (231)
  • Tile underride device front and rear
  • LED lighting system
  • Hydraulic articulated drawbar with locking plate
  • Drawbar eye with K80 flange
  • Drawbar eye R50 (hitch)

Ideal for agriculture, nurseries, organic farms and small municipalities with a composting capacity of up to 1,000 tons per year.

  • Conversion capacity up to 400 m³/h.
  • Maneuverable machine; the TG 231 compost turner is only 3 m long.
  • Low maintenance costs, simplest maintenance.
  • Easy handling, simple operation.

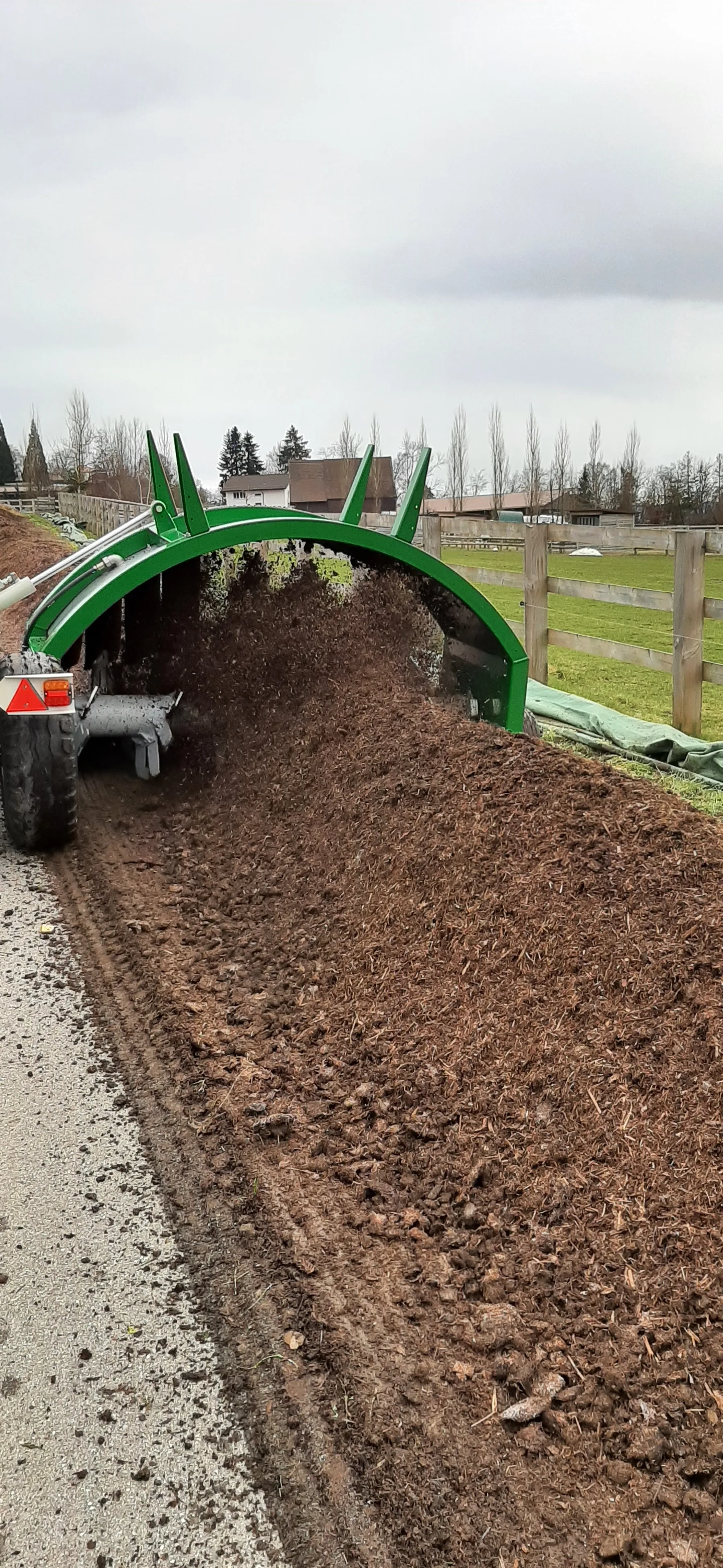

  • The massive arch construction of the tunnel made of 6 mm steel achieves very great stability, has no weak corners and the powder coating prevents corrosion.
  • All wear plates are made of chrome steel.

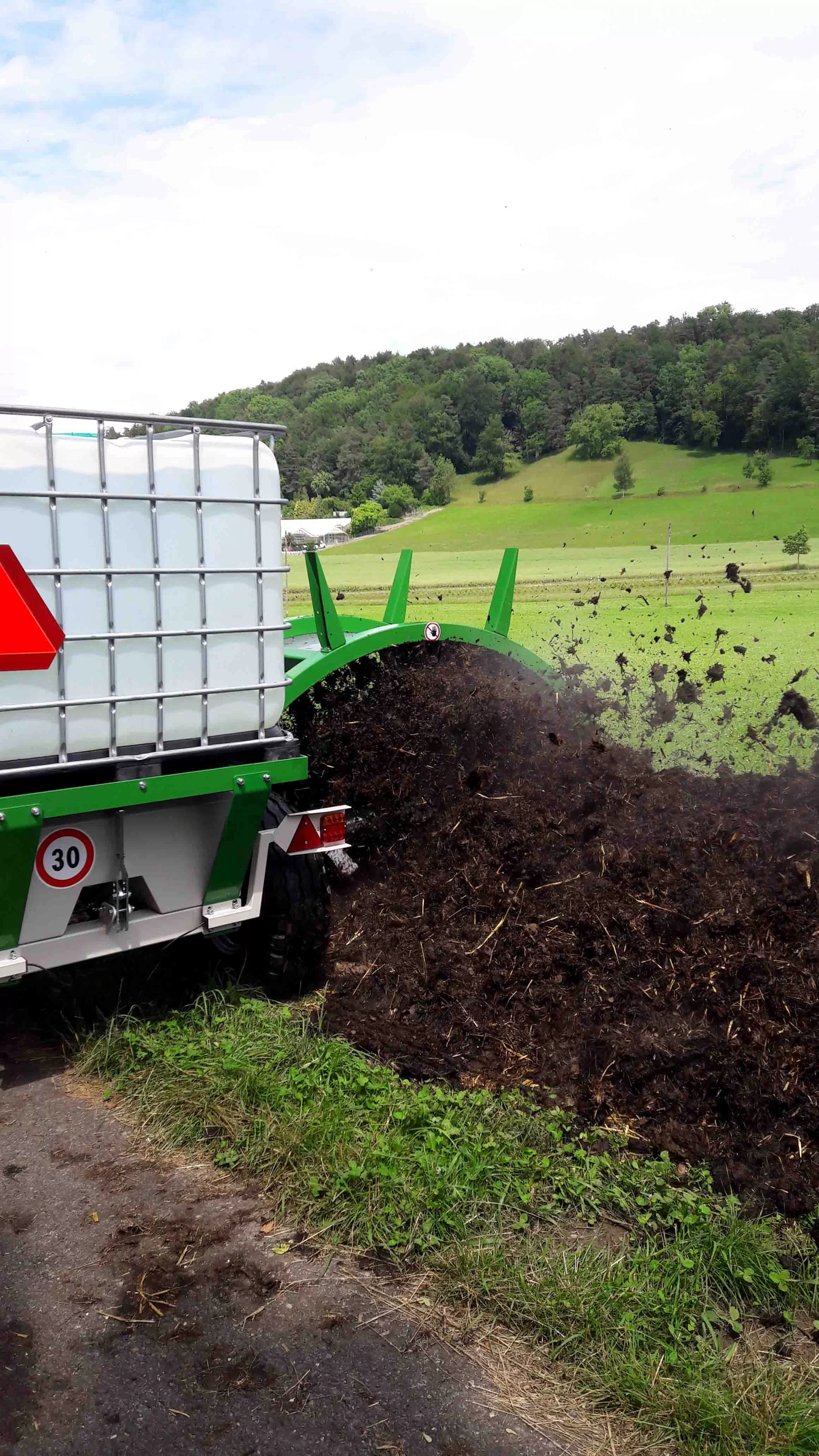

  • Robust, balanced transfer shaft that properly transfers the material to be composted (from the inside to the outside).
  • Rapid aerobic composting; within 8 - 12 weeks, depending on the material.
  • Large wide tires and thus little ground pressure.
  • Large support wheel of the transfer tunnel.






















Brochure TG 231
